BF30 HP SPECIFICATION SHEET

  • BF30 SHGU

  • Engine

  • Engine Type OHC - 3 cylinders

  • Valves 6 valves

  • Displacement (cc) 552

  • Bore X Stroke (mm) 61 x 63

  • Full Throttle Range (RPM) 5,000 - 6,000

  • Rated Power (kW (PS)) 22.1

  • Cooling System Water Cooled (with Thermostat)

  • Fuel Delivery 3 carburettors with accelerator pump

  • Ignition System Electronic PGM-IG

  • Starting System Electric starter

  • Exhaust SystemThrough propeller boss

  • Gear Ratio2.08

  • Propeller RotationStandard

  • Engine Trim and TiltGas Assist Tilt / Power Trim & Tilt

  • Function

  • Electric StarterY

  • Battery Charging Capacity (AMP.)10A

  • Dimensions

  • Transom Height (mm)431

  • Dry Weight (kg)80

  • Overall Length (mm)720 (Tiller) / 640 (Remote)

  • Overall Width (mm)375

  • Overall Height (mm)1195


​

  • BF30 SRTU

  • FeatureEngine

  • Engine Type OHC - 3 cylinders

  • Valves 6 valves

  • Displacement (cc) 552

  • Bore X Stroke (mm) 61 x 63

  • Full Throttle Range (RPM) 5,000 - 6,000

  • Rated Power (kW (PS)) 22.1

  • Cooling System Water Cooled (with Thermostat)

  • Fuel Delivery 3 carburettors with accelerator pump

  • Ignition System Electronic PGM-IG

  • Starting System Electric starter

  • Exhaust System Through propeller boss

  • Gear Ratio 2.08

  • Propeller Rotation Standard

  • Engine Trim and Tilt Gas Assist Tilt / Power Trim & Tilt

  • Function

  • Electric Starter Y

  • Battery Charging Capacity (AMP.) 10A

  • Dimensions

  • Transom Height (mm) 431

  • Dry Weight (kg) 77.5

  • Overall Length (mm) 720 (Tiller) / 640 (Remote)

  • Overall Width (mm) 375

  • Overall Height (mm) 1195

c4_r (1).png

  • BF30 LHGU

  • Feature Engine

  • Engine Type OHC - 3 cylinders

  • Valves 6 valves

  • Displacement (cc) 552

  • Bore X Stroke (mm) 61 x 63

  • Full Throttle Range (RPM) 5,000 - 6,000

  • Rated Power (kW (PS)) 22.1

  • Cooling System Water Cooled (with Thermostat)

  • Fuel Delivery 3 carburettors with accelerator pump

  • Ignition System Electronic PGM-IG

  • Starting System Electric starter

  • Exhaust System Through propeller boss

  • Gear Ratio2.08

  • Propeller Rotation Standard

  • Engine Trim and Tilt Gas Assist Tilt / Power Trim & Tilt

  • Function

  • Electric Starter Y

  • Battery Charging Capacity (AMP.) 10A

  • Dimensions

  • Transom Height (mm) 552

  • Dry Weight (kg) 82

  • Overall Length (mm) 720 (Tiller) / 640 (Remote)

  • Overall Width (mm) 375

  • Overall Height (mm) 1320

c4_r (2).png

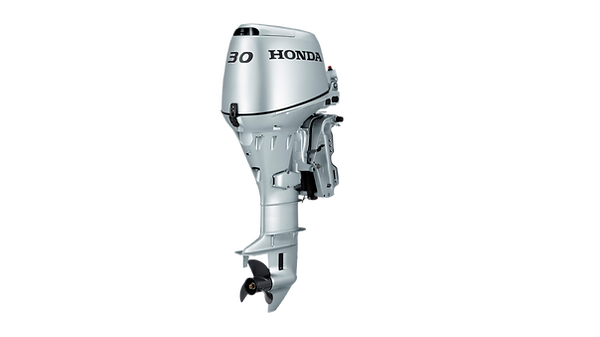

  • BF30 LRTU

  • Feature Engine

  • Engine Type OHC - 3 cylinders

  • Valves 6 valves

  • Displacement (cc) 552

  • Bore X Stroke (mm) 61 x 63

  • Full Throttle Range (RPM) 5,000 - 6,000

  • Rated Power (kW (PS)) 22.1

  • Cooling SystemWater Cooled (with Thermostat)

  • Fuel Delivery 3 carburettors with accelerator pump

  • Ignition System Electronic PGM-IG

  • Starting System Electric starter

  • Exhaust System Through propeller boss

  • Gear Ratio 2.08

  • Propeller Rotation Standard

  • Engine Trim and Tilt Gas Assist Tilt / Power Trim & Tilt

  • Function

  • Electric StarterY

  • Battery Charging Capacity (AMP.) 10A

  • Dimensions

  • Transom Height (mm) 552

  • Dry Weight (kg) 79.5

  • Overall Length (mm) 720 (Tiller) / 640 (Remote)

  • Overall Width (mm) 375

  • Overall Height (mm) 1320

c4_r (3).png
